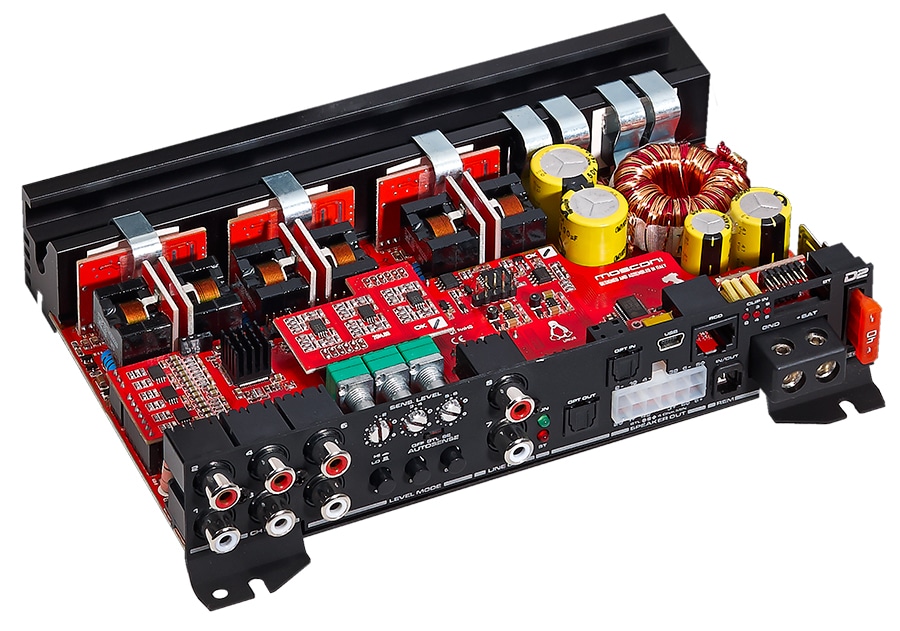

D2 80.6 DSP

FEATURES:

    • Class D, 6-channel amplifier with on-board DSP
    • +2 digitally processed line outputs
    • DSP with SP-DIF digital input, AUX inputs suitable for hands-free set, mobile navigation, and external stereo sources
    • Silver-Brushed finishing
    • Power Rating: 105 Watt @ 4 Ohm < 1% THD+N
    • Sn Ratio: >XX dBA (ref: 1 Watt into 4 Ohm)



  • VERY IMPORTANT NOTE – READ CAREFULLY:
    This amplifier is designed to play music on real speakers. It is not rated to drive static signals on pure resistive loads.



SPECIFICATIONS:

Target powers (14V4):
  • 80W @ 4 Ohm
  • 100W @ 2 Ohm
  • 70W x 4 + 215W x 1 (Ch 5-6) @ 4 Ohm
Input sensitivity: (Power rating ref)
  • 0.27 V ÷ 8.5 V (Low Level)
  • 0.7 V ÷ 22 V (High Level)
Xover functions (always in line):
  • Subsonic Filter: (10 ÷ 20000 Hz)
  • Low Pass Filter: (10 ÷ 20000 Hz)
  • Slope (dB/Oct): 6-12 [up to 60 (CH1-2-3-4) or 48 (CH5-6-7-8), if cascaded]
  • Band pass allowed, Variable Q: 0.5 ÷ 40
Special Features:
  • Remote Volume Control (optional)
  • Phase Inversion: 0° ÷ 180°
  • Time delay (ms): 0 ÷ 15 (0.02 steps)
  • Low Level / High Level imput mode (by switch)
  • Auto Sense (only in High Level mode)
  • Low Level Output (CH7/8)
Size: 200x145x40 mm
Weight: 1340 g
« »
