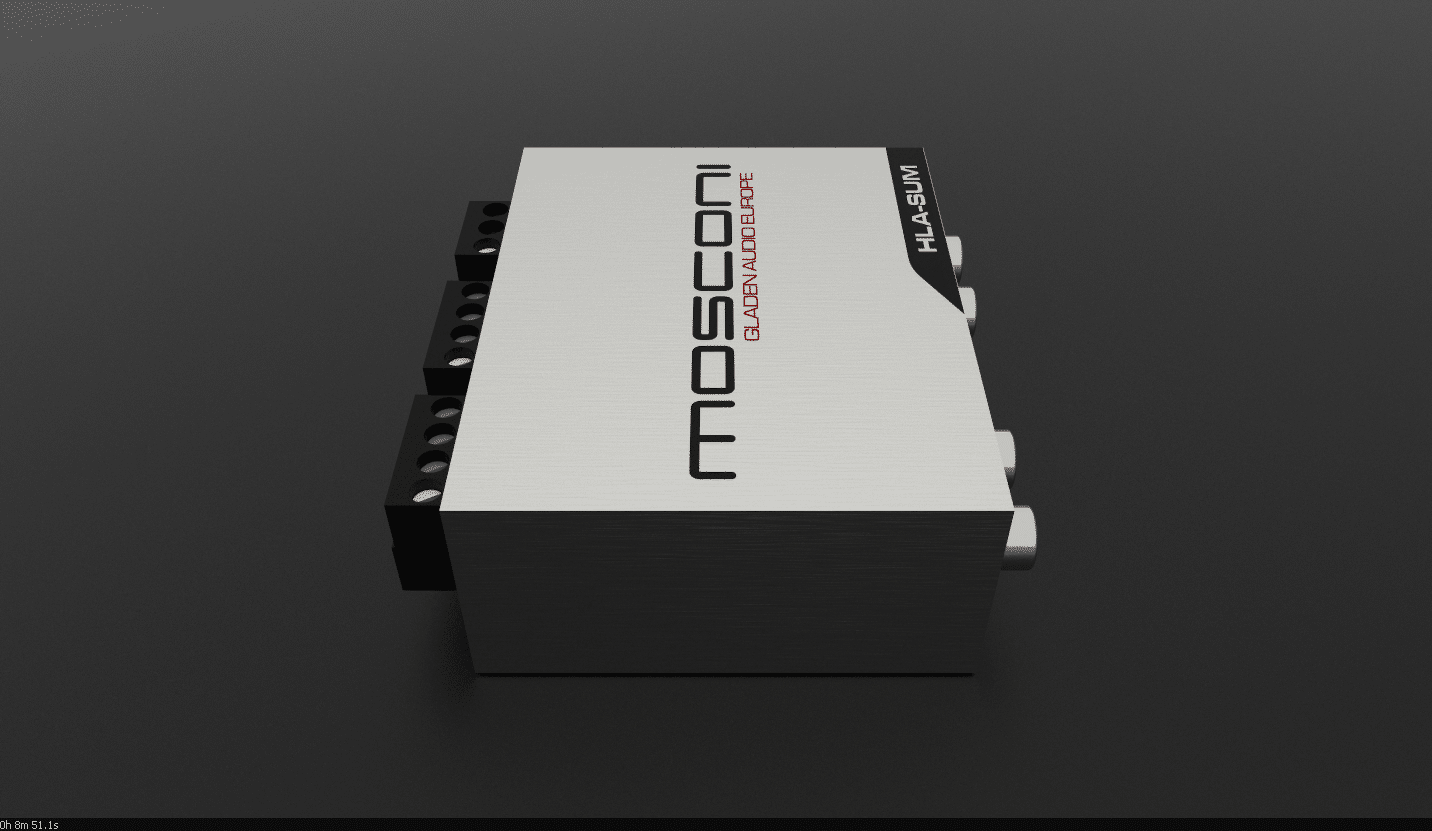

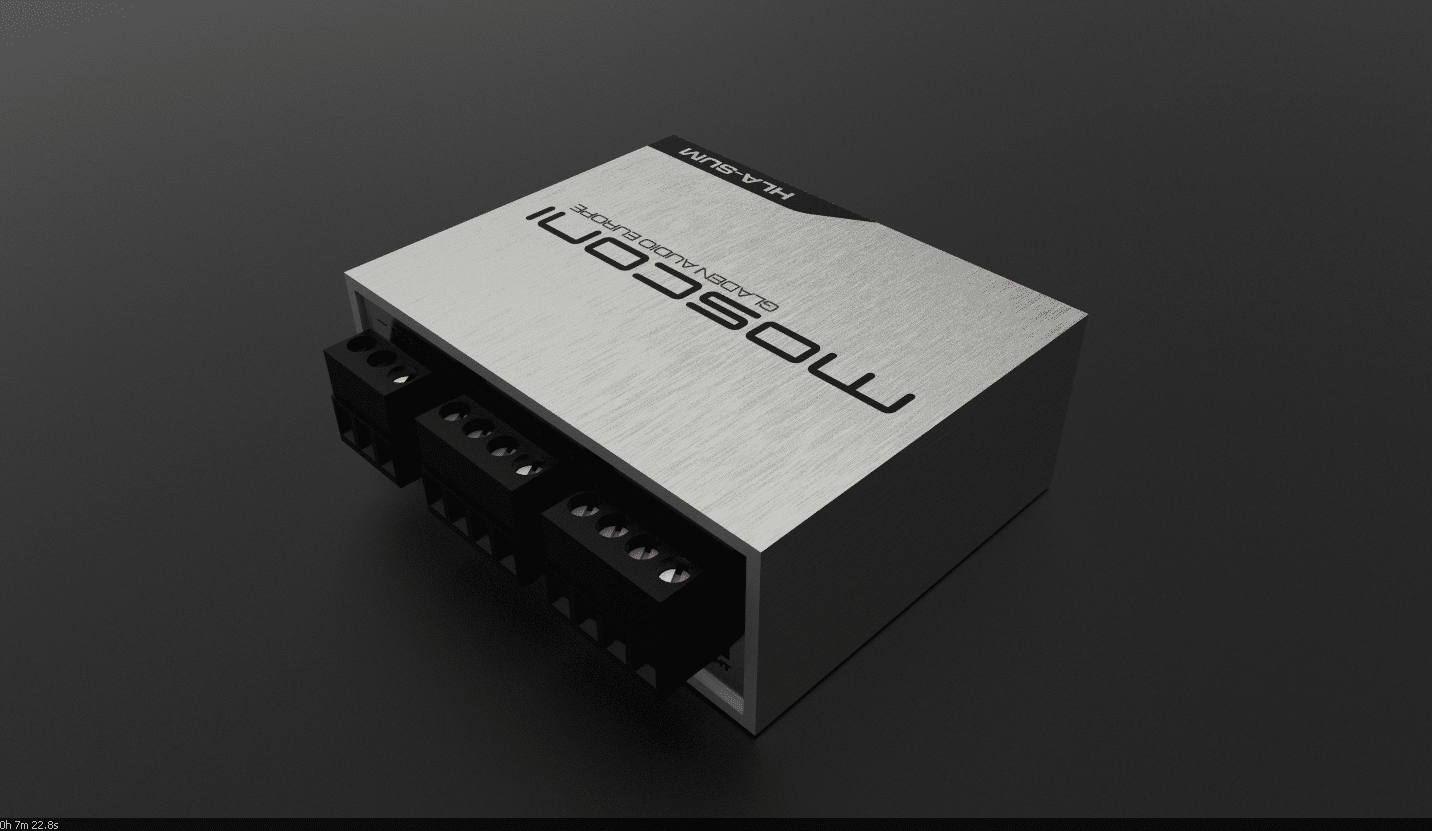

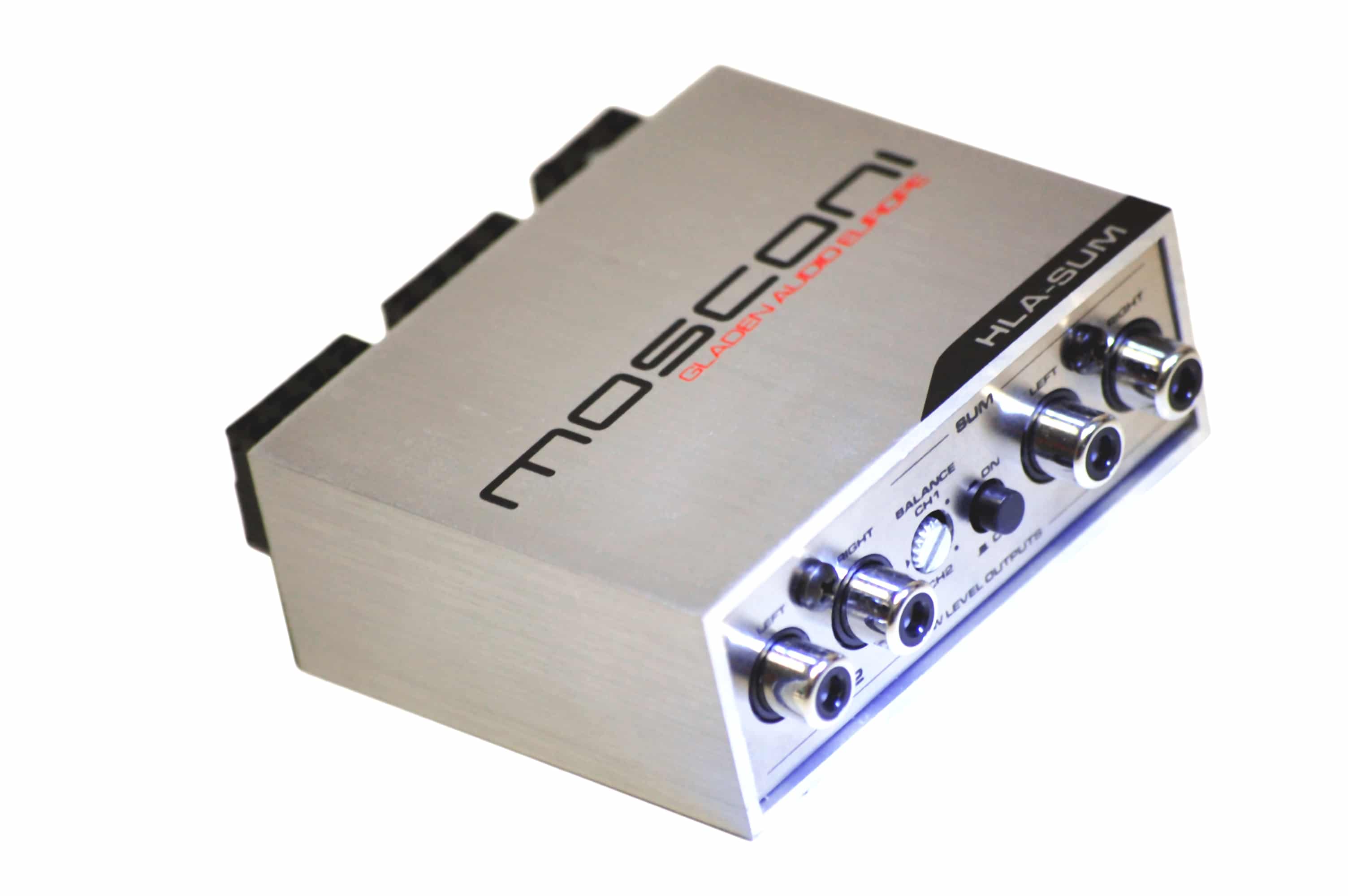

HIGH LOW ADAPTER with SUMMING function.
For all radios without PRE outputs.
- Active signal processor circuitry for a superior sound performance with 4-ch power inputs and 4-ch line level outputs on solid RCA connectors.
- SUM capability on CH-1 outputs to rebuild filtered signals (multi-way systems) and BALANCE capability between CH-1 & CH-2 inputs (SUM mode only) to op- timize the system adjustments.
- Switch-on signal (Remote) generation for high power outputs B.T.L. and low power output S.E. (by the internal switcher).
- Suitable for any type of radio and amplifier.
- Optimized A class working operational amplifiers, full immunity to any kind ofinterference, noise and switch-on/off bump/pop.
- Total harmonic distortion (THD) extremely low.
- Low operative current consumption (less than 30mA @ 14V4) and very lowquiescent current (less than 0.8mA @ 14V4).
- Double layer PCB and full Surface Mount Technology (SMT).
- Very small size for easy installations: 80 x 83 x 30 mm!
- Plug & Play, non-intrusive installation.
- Professional aluminum housing, brushed finishing.
